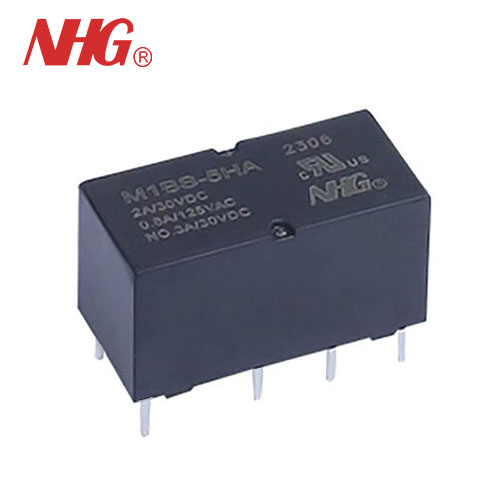

High Reliability Fully Sealed Signal Relay

The following is the introduction of high quality High Reliability Fully Sealed Signal Relay, hoping to help you better understand High Reliability Fully Sealed Signal Relay. Welcome new and old customers to continue to cooperate with us to create a better future!
◉ High Reliability bifurcated contact
◉ Fully sealed for immersion cleaning
◉ Conforms to FCC Part 68 1500V Surge and Dielectric 1000VAC
◉ RoHS Compliant

Model:M1BS

PDF DownLoad

Product Description

DIL pitch terminals. High sensitivity

Conforms to FCC Part 68 1.5kV surge and dielectric 1000VAC
High reliability bifurcated contact.
Application for telecommunication equipment, office equipment, security alarm systems, measuring instruments,medical monitoring equipment, audio visual equipment, flight simulator, sensor control

Ordering Information

1 Part number: M1BS
2 Coil rated Voltage: DC:3:3V; 5:5V; 6:6V; 9:9V;
12:12V; 24:24V; 48:48V

3 Enclosure: H: Wash tight
4 Contact material: W: AgNi
5 Nominal coil power: Nil:0.55W; A:0.4W

Contact Data

Contact Arrangement		2C(DPDT(B-M))
Contact Material		AgNi(Au plated)
Contact Rating (resistive)		2A/30VDC; 0.6A/125VAC
Max. Switching Power		90W 125VA	Min. Switching load:1mA/10mV(Reference Value)
Max. Switching Voltage		220VDC 250VAC	Max. Switching Current:2A
Contact Resistance		≤100mΩ	Item 4.12 of IEC 61810-7
Operational Life	Electrical	1X10⁵	Item 4.30 of IEC 61810-7
	Mechanical	1X10⁸	Item 4.31 of IEC 61810-7

CAUTION:

Relays previously tested or used above 10mA resistive at 6V maximum (DC or peak AC)open circuit are not recommended for subsequent use in low level applications.

Coil Parameter

Dash numbers	Coil voltage VDC		Coil resistance Ω±10%	Pick-up voltage VDC(max) (70% of rated voltage )	Drop-out voltage VDC(min) (10% of rated voltage)	Coil power W	Operate time ms	Release time ms
Dash numbers	Rated	Max.	Coil resistance Ω±10%	Pick-up voltage VDC(max) (70% of rated voltage )	Drop-out voltage VDC(min) (10% of rated voltage)	Coil power W	Operate time ms	Release time ms
MIBS-003	3	4.2	16	2.1	0.3	0.56	Approx. 4.5	Approx. 1.5
MIBS -005	5	7.0	45	3.5	0.5	0.56
MIBS -006	6	8.4	66	4.2	0.6	0.55
MIBS -009	9	12.3	140	6.3	0.9	0.58
MIBS -012	12	17.4	280	8.4	1.2	0.52
MIBS -024	24	34.0	1070	16.8	2.4	0.54
MIBS -048	48	64.9	3900	33.6	4.8	0.59
MIBS -003A	3	4.9	22.5	2.1	0.3	0.4	Approx. 4.5	Approx. 1.5
MIBS -005A	5	8.1	62.5	3.5	0.5	0.4
MIBS -006A	6	9.7	90	4.2	0.6	0.4
MIBS -009A	9	14.5	203	6.3	0.9	0.4
MIBS -012A	12	19.4	360	8.4	1.2	0.4
MIBS -024A	24	38.9	1440	16.8	2.4	0.4
MIBS -048A	48	77.8	5760	33.6	4.8	0.4

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Characteristics

Electrostatic Capacitance
Between Open Contacts	Approx.0.7pF	Item 4.41 of IEC 61810-7
Between Coil & Contacts	Approx. 1.0pF	Item 4.41 of IEC 61810-7
Between Contact Poles	Approx.0.9pF	Item 4.41 of IEC 61810-7
Insulation Resistance	1000MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength
Between Open Contacts Between Coil & Contacts Between Contact Poles	1000V AC 1min 1000\AC 1min 1000VAC 1min	Item 4.9 of IEC 61810-7
Surge Withstand Voltage
Between Open Contacts Between Coil & Contacts Between Contact Poles	1500V 1500V 1500V	FCC 68
Shock Resistance	Functional:98m/s² 11ms; Destructive:980 m/s² 6ms	Item 4.26 of IEC 61810-7
Vibration Resistance	10Hz-55Hz Double amplitude Functional:1.5mm Destructive:5mm	Item 4.28 of IEC 61810-7
Terminals Strength	5N	Item 4.24 of IEC 61810-7
Temperature Range	-40℃~65℃(-40° F~149° F) (-40℃~70℃ for 0.4W Coil)
Mass	Approx. 4.8g	Item 4.7 of IEC 61810-7
