150A Automotive Power Relay

As the professional manufacturer, we would like to provide you 150A Automotive Power Relay. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.
◉ Plug in or PCB terminals
◉ Wide temperature range : -40°C to 125° C
◉ 1 Form A and 1 Form C contact arrangement
◉ RoHS Compliant

Model:NVF4-6

PDF DownLoad

Product Description

Small size.
Contact load capacity up to 150A.
Suitable for automobile.

PC board mounting and direct insert mounting available.

Ordering Information

1 Part number:NVF4-6,
NVF4-6a(Metal Bracket)
2 Contact arrangement:A:1A; C:1C
3 Enclosure:Z: Flux proof
4 Contact Current:50A,100A,150A
5 Terminals:a: plug in type; b PCB type
6 Contact Material:S: AgSnO2
7 Coil transient suppression:D: with diode
R: with resistance
NIL: standard
8 Coil rated voltage(V):DC:12,24

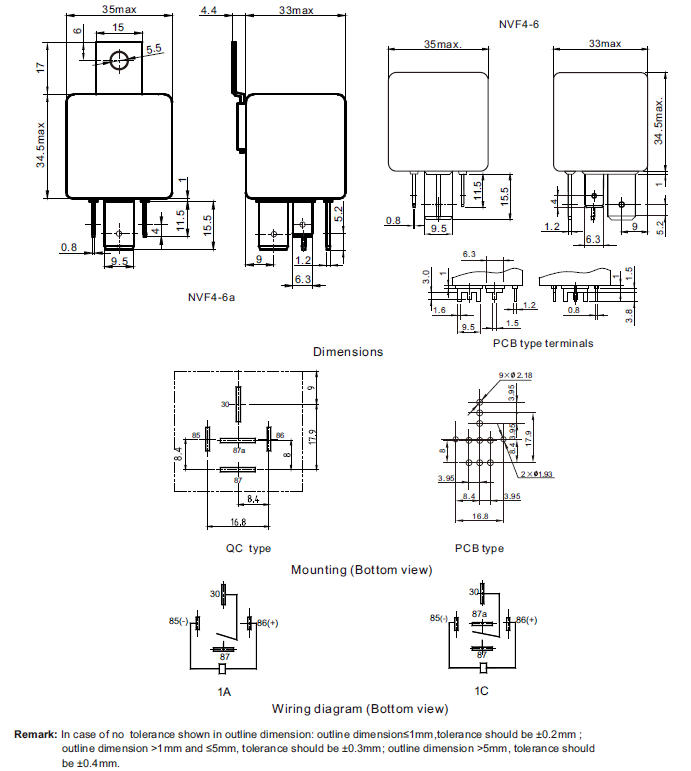

Contact Data

Coil Parameter

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Characteristics

Insulation Resistance1'	100MΩ min (at 500VDC)	Item 4.11 of IEC61810-7
Dielectric Strength11 Between Contacts Between Contact and Coil	50Hz 750V 50Hz 1000V	Item 4.9 oflEC 61810-7 Item 4.9 oflEC 61810-7
Shock Resistance	147m/s² 11ms	Item 4.26 oflEC 61810-7
Vibration Resistance	10Hz~40Hz Double amplitude 1.5mm	Item 4.28 oflEC 61810-7
Terminals Strength	Terminal retention(pull & push):≥100N Terminal resistance to bending(front & side):≥10N	Item 4.24 oflEC 61810-7
Ambient Temperature	-40℃~125℃	Item 4.11 of IEC61810-7
Relative Humidity	5% to 85%	Item 4.16 oflEC 61810-7
Mass	65g	Item 4.7 oflEC 61810-7
