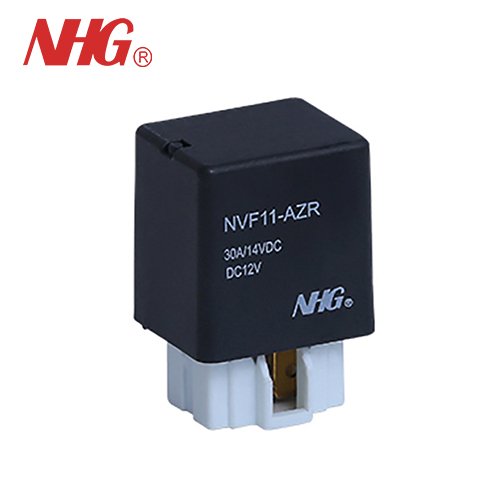

40A Switching Capability Automotive Relay
◉ High quality automotive relay ◉ 1 Form A contact arrangement ◉ Wide temperature range : -40°C to 105° C Plastic sealed and flux proofed types available ◉ RoHS CompliantModel:NVF11
Send Inquiry
PDF DownLoad
Product Description
Switching capacity up to 40A.
Direct inserting mounting.
Direct inserting mounting.
Suitable for automation system and automobile auxiliary etc.
Ordering Information
1 Part number: NVF11 & NVF12
2 Contact arrangement: A:1A
3 Enclosure: S: Wash tight; Z: Flux proof
4 Contact current: 30A/14VDC
5 Coil Voltage(VDC): 12,24
6 Coil transient suppression: NIL:standard
R:with resistor
Contact Data
Coil Parameter
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
Characteristics
|
Insulation Resistance |
10OMΩ min (at 500VDC) |
Item 4.9 of IEC 61810-7 |
|
Dielectric Strength Between Contacts Between Contact and Coil |
50Hz 500V 50Hz 750V |
Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7 |
|
Shock Resistance |
Functional: 98m/s² 11 ms |
Item 4.26 of IEC 61810-7 |
|
Vibration Resistance |
10Hz〜55Hz Double amplitude 1.5mm |
Item 4.28 of IEC 61810-7 |
|
Terminals Strength |
10N |
Item 4.24 of IEC 61810-7 |
|
Ambient Temperature |
-40℃~105℃ |
|
|
Relative Humidity |
5% to 85% |
Item 4.16 of IEC 61810-7 |
|
Mass |
35g(NVF11) 38g(NVF12) |
Item 4.7 of IEC 61810-7 |
Dimensions
