Diode or Resistor assembled available.
1 Part number:NVF7,
NVF7-2(Plastic Bracket)
NVF7-2a(Metal Bracket)
NVF7-2b(Shrouded With Metal Bracket)
2 Contact arrangement:A:1A
3 Enclosure:S: Wash tight; Z: Flux proof
4 Contact current: 70A,80A

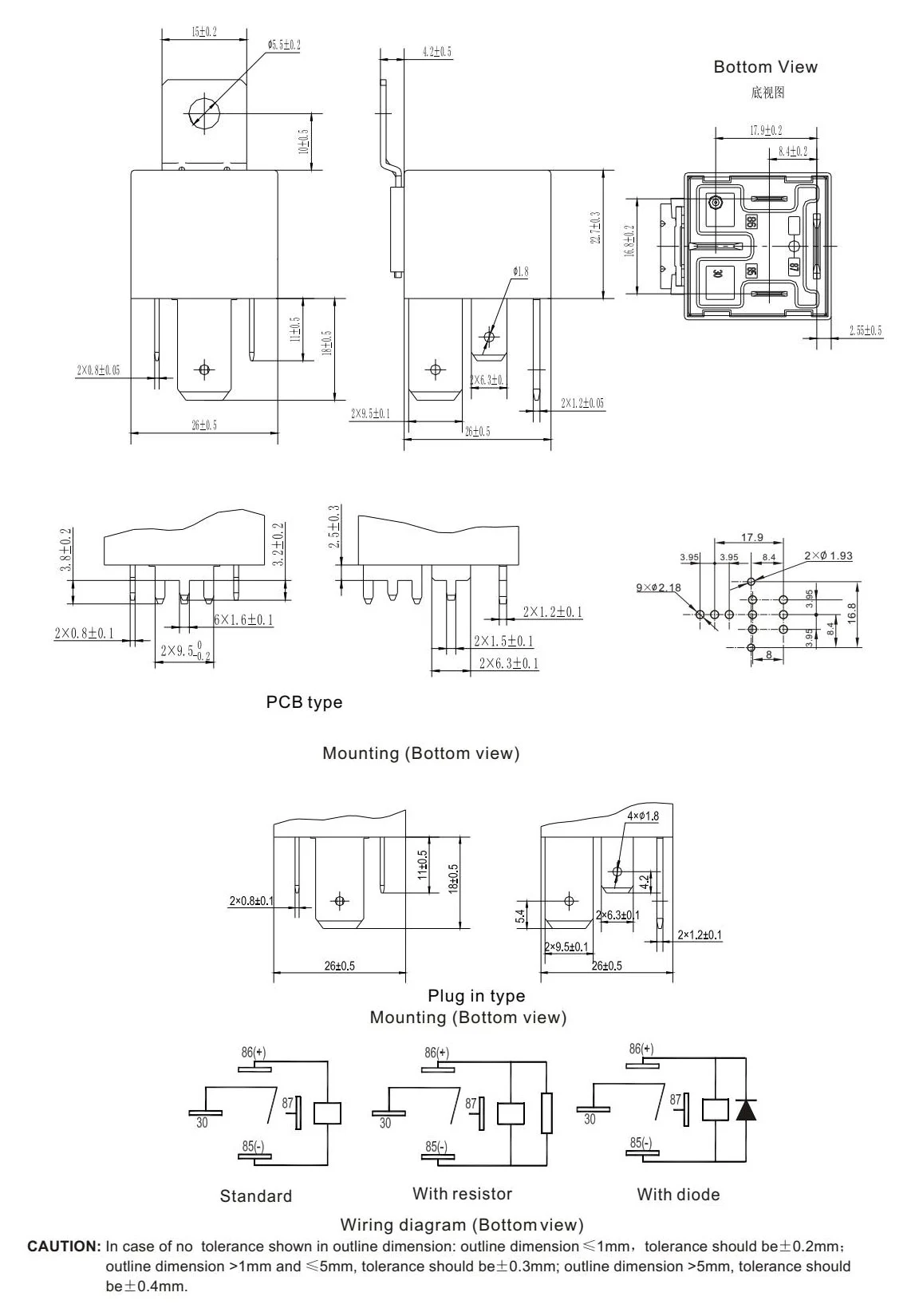

5 Terminals:a: Plug in type; b:PCB type
6 Coil transient suppression:D: with diode
R: with resistor
NIL: standard
7 Coil rated voltage(V):DC:12,24
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
Insulation Resistance |
100MΩ min (at 500VDC) |
Item 4.11 of IEC 61810-7 |
Dielectric Strength Between Open Contacts Between Contact and Coil |
50~60Hz 500V 1min 50~60Hz 500V 1min |
Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7 |
Shock Resistance |
294m/s² |
Item 4.26 of IEC 61810-7 |
Vibration Resistance |
10~22.3Hz Double amplitude 10mm 22.3~500Hz 98m/s² |
Item 4.28 of IEC 61810-7 |
Terminals Strength |
Terminal retention(pull and push):≥100N Terminal resistance to bending (front & side):≥10N |
Item 4.24 of IEC 61810-7 |
Ambient Temperature |
-40℃~125℃ |
|
Relative Humidity |
5% to 85% |
Item 4.16 of IEC 61810-7 |
Mass |
38g |
Item 4.7 of IEC 61810-7 |
Note: 1). When testing, coil terminals should be connected, If coil transient suppression is installed in relay .
