Automotive Low Profile Micro 280 Relay

The following is the introduction of high quality Automotive Low Profile Micro 280 Relay, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future!
◉ Smallest Plug in
◉ 2.8mm QC terminal type
◉ 1 Form A contact arrangement
◉ Wide temperature range : -40°C to 100° C
◉ RoHS Compliant

Model:NVF8

PDF DownLoad

Product Description

Low profile micro 280 terminal.
20A switching capability.
Contact arrangement:1A.

Can be widey used in car relay box.

Ordering Information

1 Part number: NVF8
2 Contact arrangement A:1A
3 Enclosure Z: Flux proof
4 Coil transient suppression: R: with resistor

Contact Data

Coil Parameter

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

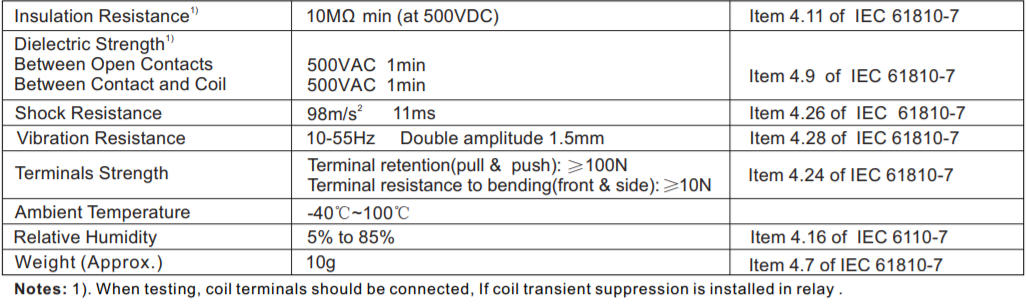

Characteristics

Insulation Resistance	100MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength Between Contacts Between Contact and Coil	50~60Hz 500V 1min 50~60Hz 500V 1min	Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7
Shock Resistance	98m/s² 11ms	Item 4.26 of IEC 61810-7
Vibration Resistance	10-55Hz Double amplitude 1.5mm	Item 4.28of IEC 61810-7
Terminals Strength	8N	Item 4.24 of IEC 61810-7
Ambient Temperature	-40℃~100℃
Relative Humidity	5% to 85%	Item 4.16 of IEC6110-7
Mass	10g	Item 4.7 of IEC 61810-7
