Micro ISO Automotive Relay

As the professional manufacturer, we would like to provide you Micro ISO Automotive Relay. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.
◉ 35A switching capability
◉ 1 Form A and 1 Form C contact arrangement
◉ Plastic sealed and flux proofed types available
◉ Wide temperature range : -40°C to 125° C Plug in or PCB terminals
◉ RoHS Compliant

Model:NVFM

PDF DownLoad

Product Description

Switching capacity up to 35A.
PC board mounting and insert mounting available.

Suitable for automation system and automobile auxiliary etc.

Ordering Information

1 Part number:NVFM
2 Contact arrangement A:1A (1.2W); C:1C(1.5W)
3 Enclosure:S: Wash tight Z: Flux proof
4 Contact current:25A:NO:35A/14VDC; NC:25A/14VDC
20A:NO:25A/14VDC; NC:20A/14VDC
5 Coil rated voltage(V):DC:6,12,24,48
6 Coil power:1.2:1.2W; 1.5:1.5W
7 Terminals:a: plug in type; b:PCB type
8 Coil transient suppression:

D: with diode
R: with resistance
NIL: standard

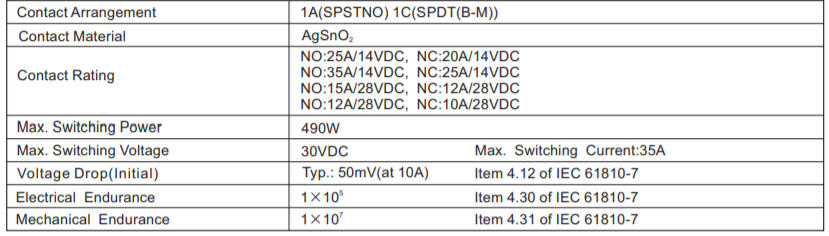

Contact Data

Coil Parameter

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Characteristics

Insulation Resistance11	100MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength1> Between Contacts Between Contact and Coil	50Hz 500V 50Hz 1000V	Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7
Shock Resistance	98m/s² 11ms	Item 4.26 of IEC 61810-7
Vibration Resistance	10Hz-40Hz Double amplitude 1.27mm	Item 4.28 of IEC 61810-7
Terminals Strength	100N	Item 4.24 of IEC 61810-7
Ambient Temperature	-40℃~125℃
Relative Humidity	5% to 85%	Item 4.16 of IEC 61810-7
Mass	18.5g	Item 4.7 of IEC 61810-7
