10A Polarized Latching Relay

Huaguan is 10A Polarized Latching Relay manufacturers and suppliers in China who can wholesale it. We can provide professional service and better price for you. If you interested in products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
◉ High insulation
◉ 10A switching capability
◉ Small size and light weight
◉ RoHS Compliant

Model:NT74L

PDF DownLoad

Product Description

Small size and light weight.
Contact switching capacity can reach 10A.
PC board mounting.atching relay

Ordering Information

1 Part number:NT74L
2 Contact arrangement:A:1A; C:1C
3 Enclosure:S: Wash tight;Z: Flux proof
4 Coil rated voltage(V):DC:3,5,9,12,24
5 Coil:NIL:Single coil;D: double coils
6 Polarity:Nil: standard;R: reverse polarity
7 Contact plating:NIL:Standard;G:Gold plated

Contact Data

Coil Parameter

CAUTION:

1.When latching relays are installed in equipment, the latch and reset coil should not simultaneously. Coil should not be pulsed with less than the nominal coil voltage and pulse width should be a minimum of three times the specified operate time of the relay. If these conditions are not followed, it is possible for the relay to in be the magnetically neutral position .

2.Switching voltage is for test purpose only and are no to be used as design criteria.

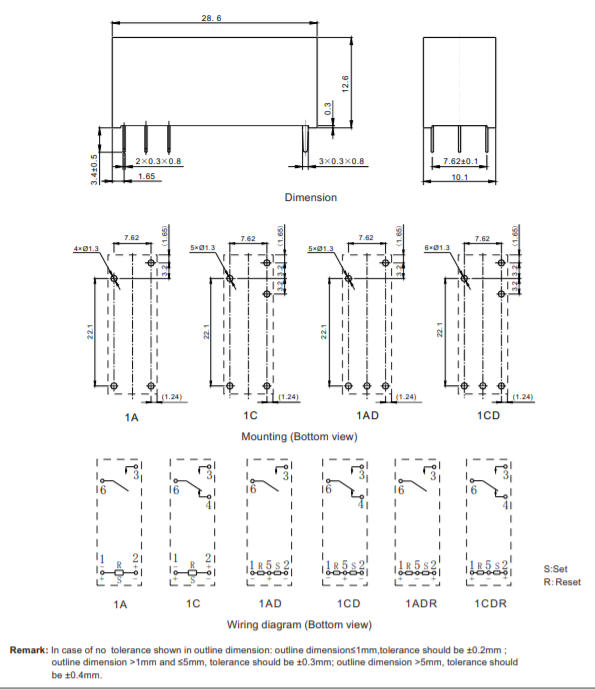

Characteristics

Insulation Resistance	1000MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength Between Contacts Between Contact and Coil	50Hz 1000V 50Hz 5000V	Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7
Shock Resistance	Functional:98m/s²	Item 4.26 of IEC 61810-7
Shock Resistance	Destructive:980m/s²	Item 4.26 of IEC 61810-7
Vibration Resistance	10Hz~55Hz Double amplitude 1.65mm	Item 4.28 of IEC 61810-7
Terminals Strength	10N	Item 4.24 of IEC 61810-7
Ambient Temperature	-40℃~85℃
Relative Humidity	5% to 85%	Item 4.16 of IEC 61810-7
Mass	8g	Item 4.7 of IEC 61810-7
