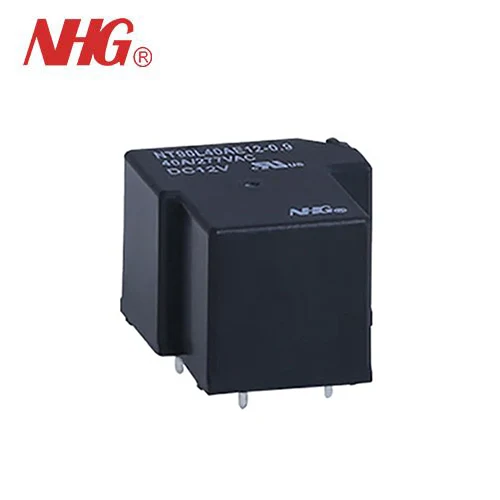

40A Polarized PCB Latching Relay
◉ Energy Saving ◉ 40A switching capability ◉ Environmental friendly product ◉ Single coil and dual coil available ◉ RoHS CompliantModel:NT90L
Send Inquiry
PDF DownLoad
Product Description
Single and double coils magnet latching relay available.
Switching capacity up to 40A.
Energy saving and enviromental friendly product.
Ordering Information
1 Part number:NT90L
2 Load: 30A,40A/277VAC (Resistive load)
3000W 240VAC (Incandescent Lamp)
5A/280VAC (Electronic ballast)
2HP 250VAC (Motor load)
3 Contact arrangement: A:1A; B:1B; C:1C
4 Enclosure:S: Wash tight; E: Flux proof
5 Coil rated voltage(V):5,12,24,48
6 Coil power:0.9:0.9W
7 Coil:NIL:Single coil; D: Double coils
Contact Data
Coil Parameter
CAUTION:
1.When latching relays are installed in equipment, the latch and reset coil should not simultaneously. Coil should not be pulsed with less than the nominal coil voltage and pulse width should be a minimum of three times the specified operate time of the relay. If these conditions are not followed, it is possible for the relay to in be the magnetically neutral position .
2.Switching voltage is for test purpose only and are no to be used as design criteria.
Safety Approvals
Characteristics
|
Insulation Resistance |
1000MΩ min (at 500VDC) |
Item 4.11 of IEC61810-7 |
|
Dielectric Strength Between Contacts Between Contact and Coil |
50Hz 1500V 1min 50Hz 2500V 4000V(Without Pin 6)1min |
Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7 |
|
Shock Resistance |
196m/s² 11ms |
Item 4.26 of IEC 61810-7 |
|
Vibration Resistance |
10Hz-55Hz Double amplitude 1.5mm |
Item 4.28 of IEC 61810-7 |
|
Terminals Strength |
10N |
Item 4.24 of IEC 61810-7 |
|
Ambient Temperature |
-40℃~85℃ |
|
|
Relative Humidity |
5% to 85% |
Item 4.16 of IEC 61810-7 |
|
Mass |
25g(Unenclosed) 28g |
Item 4.7 of IEC 61810-7 |
Dimensions
