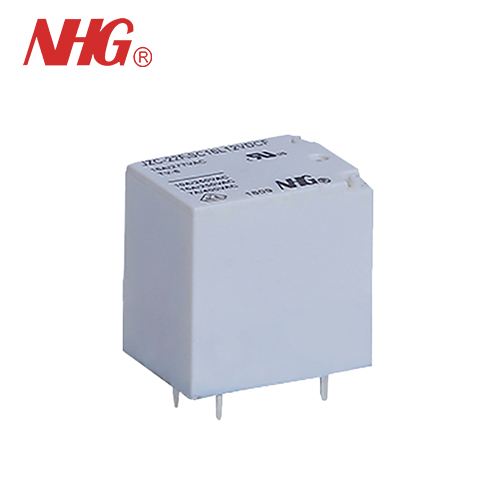

20A Power PCB Relay
◉ Small size; light weight ◉ 20A switching capability ◉ Plastic sealed and flux proofed types available ◉ RoHS CompliantModel:NT78
Send Inquiry
PDF DownLoad
Product Description
Small size, light weight.
Low coil consumption.
PC board mounting.
Suitable for household electrical appliances, automation system, electronic equipment, instrument, meter,
Low coil consumption.
PC board mounting.
Suitable for household electrical appliances, automation system, electronic equipment, instrument, meter,
telecommunication facilities and remote control facilities.
Ordering Information
1 Part number:NT78
2 Contact arrangement:A:1A B:1B C:1C
3 Enclosure:S: Wash tight;
NIL:Flux proof
4 Coil power:0.6:0.6W; 0.8:0.8W
5 Coil rated voltage(V):DC:6,9,12,24

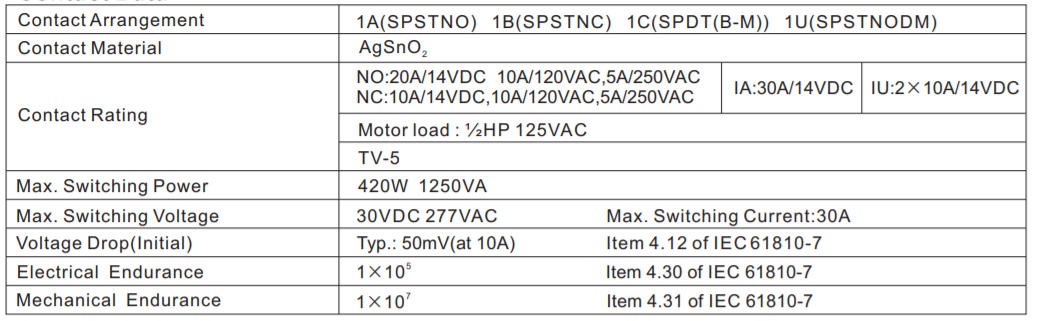

Contact Data
CAUTION: 1.For the intermediate current, it only applies to the room temperature.
Coil Parameter
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
Characteristics
|
Insulation Resistance |
100MΩ min (at 500VDC) |
Item 4.11 of IEC 61810-7 |
|
Dielectric Strength Between Contacts Between Contact andCoil |
50Hz 500V 50Hz 500V |
Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7 |
|
Shock Resistance |
98m/s² 11ms |
Item 4.26 of IEC 61810-7 |
|
Vibration Resistance |
10Hz〜55Hz Double amplitude 1.5mm |
Item 4.28 of IEC 61810-7 |
|
TerminalsStrength |
10N |
Item 4.24 of IEC 61810-7 |
|
Ambient Temperature |
-40℃~85℃ |
|
|
Relative Humidity |
5% to 85% |
Item 4.16 of IEC 61810-7 |
|
Mass |
6g |
Item 4.7 of IEC 61810-7 |
Safety Approvals
Dimensions
Reference Data
