Miniature PCB Relay 5A/250VAC
◉ 5A switching capability ◉ 450mW and 200mW coil available ◉ 1 Form A and 1 Form C contact arrangement ◉ Plastic sealed and flux proofed types available ◉ RoHS CompliantModel:JZC-32F
Send Inquiry
PDF DownLoad
Product Description
5A 10A switching capabilities.
SPSTNO and SPDT(B-M) configurations.
SPSTNO and SPDT(B-M) configurations.
Subminiature, standard PC layout.
Ordering Information
1 Part number:JZC-32F
2 Contact arrangement:A:1A; C:1C
3 Enclosure:S:Wash tight Z: Flux proof
4 Contact current:5A,10A
5 Coil rated voltage (V):DC:3,5,6,9,12,18,24
6 Coil power:0.2:0.2W; 0.45:0.45W
Contact Data
CAUTION: 1.For the intermediate current, it only applies to the room temperature.
Coil Parameter
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
Characteristics
|
Insulation Resistance |
100MΩ min (at 500VDC) |
Item 4.11 of IEC61810-7 |
|
Dielectric Strength Between Contacts Between Contact and Coil |
50Hz 1000V 50Hz 2500V |
Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7 |
|
Shock Resistance |
98m/s² 11ms |
Item 4.26 of IEC 61810-7 |
|
Vibration Resistance |
10Hz~55Hz Double amplitude 1.5mm |
Item 4.28 of IEC 61810-7 |
|
Terminals Strength |
5N |
Item 4.24 of IEC 61810-7 |
|
Ambient -Temperature |
-40℃~85℃ |
|
|
Relative Humidity |
5% to 85% |
Item 4.16 of IEC 61810-7 |
|
Mass |
6g |
Item 4.7 of IEC 61810-7 |
Safety Approvals

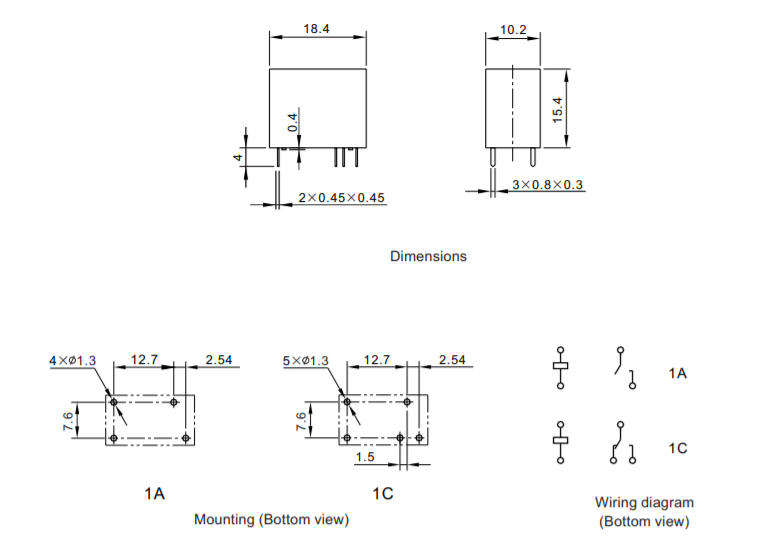

Dimensions
