50A Miniature High Power Relay With 8KV Surge Voltage

You can rest assured to buy 50A Miniature High Power Relay With 8KV Surge Voltage from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!
◉ Small size
◉ 50A switching capability
◉ Plastic sealed and flux proofed types available
◉ Meets UL 508 standard, conforms to IEC61810-1 reinforced insulation
◉ 5kV dielectric strength between the coil and contact, 8kV surge voltage
◉ RoHS Compliant

Model:NT98

Product Description

50A switching capability.
Max. Switching power can achieve 13850VA.
Meets UL 508 standard, conforms to IEC61810-1 reinforced insulation.
Approved by UL, T V and CQC.
5kV dielectric strength between the coil and contact, 8kV surge voltage.

Operated in machine tool electric appliance, electric equipment, air conditioner and various household appliances.

Ordering Information

1 Part number:NT98

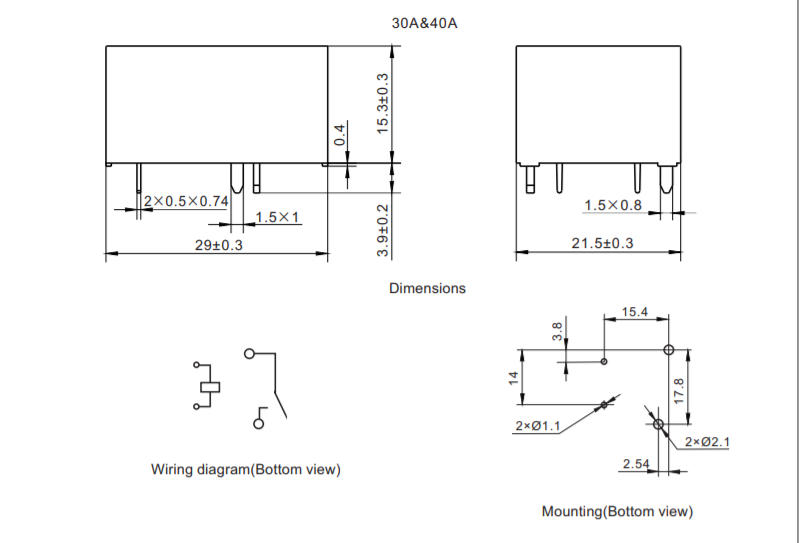

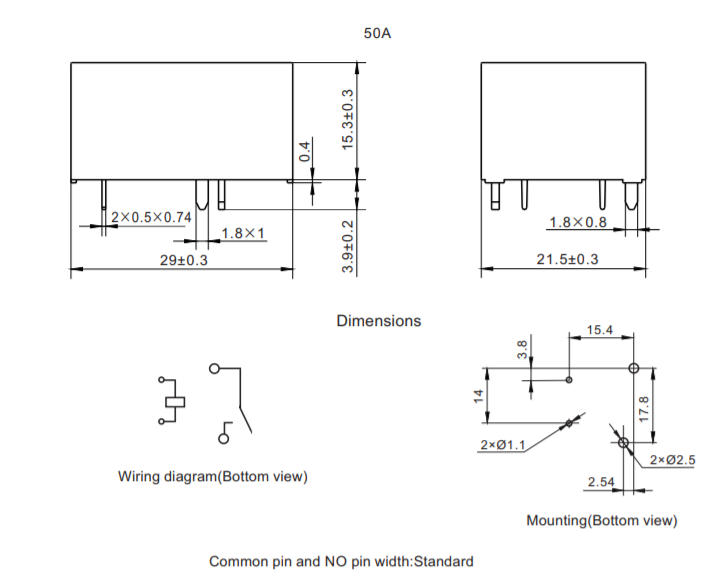

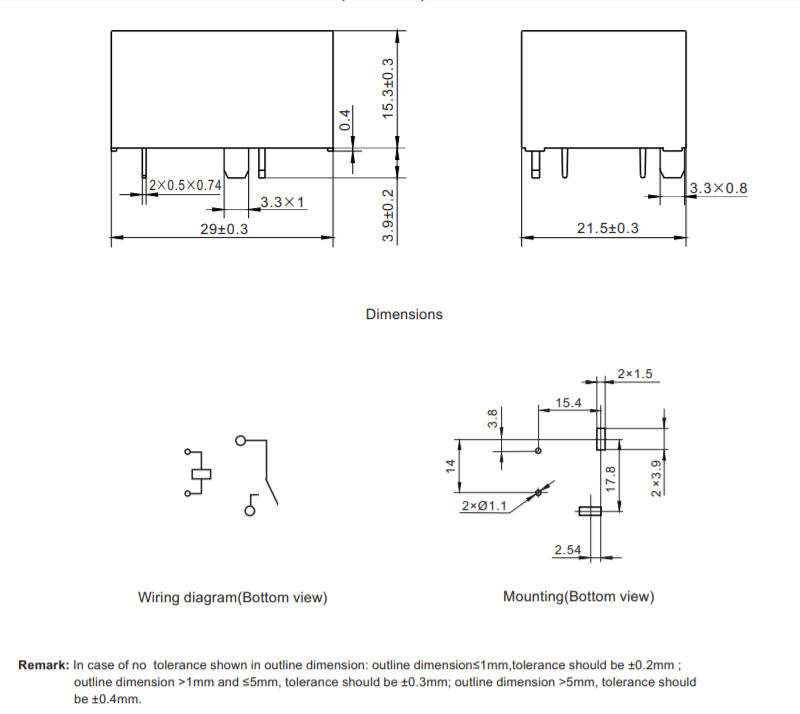

2 Common pin and N.O pin width:Nil:stand; W:3.3mm
3 Contact arrangement:A:1A
4 Enclosure:S: Wash tight; E: Flux proof

5 Contact material:S:AgSnO₂
6 Coil power:0.9:0.9W; 1.5:1.5W
7 Coil rated voltage(V):DC:5,6,9,12,24,48

1 ) Wash tight plastic case with knock off nib.

Contact Data

2 Remove vent nib after soldering and cleaning.

Coil Parameter

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Safety Approvals

Characteristics

Insulation Resistance	1000MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength Between Contacts Between Contact and Coil	50Hz 1500V 50Hz 5000V	Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7
Surge Voltage (between contact and coil)	8kV	Item 4.10 of IEC 61810-7
Clearance/Creepage	6.4mm/8.0mm
Shock Resistance	Functional: 98m/s² 11ms	Item 4.26 of IEC 61810-7
Shock Resistance	Destructive: 980m/s² 11ms	Item 4.26 of IEC 61810-7
Vibration Resistance	10Hz-55Hz Double amplitude 1.5mm	Item 4.28 of IEC 61810-7
Terminals Strength	10N	Item 4.24 of IEC 61810-7
Ambient Temperature	-40C~105℃
Relative Humidity	5% to 85%	Item 4.16 of IEC61810-7
Mass	18g	Item 4.7 of IEC 61810-7
