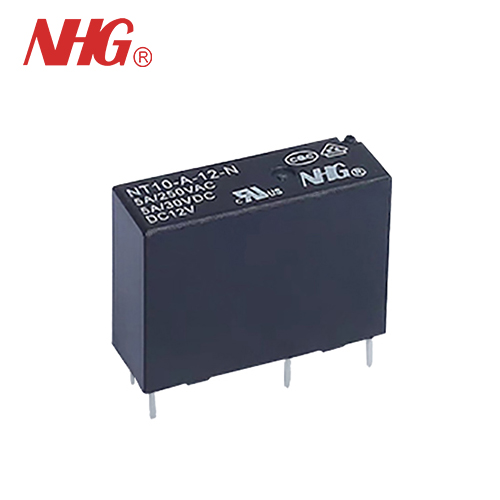

Extra Slim PCB Power Relay
◉ 7A switching capability ◉ High sensitivity: 200mW ◉ Ambient operating temperature：max 105℃ ◉ Product in accordance to IEC60335-1 available ◉ RoHS CompliantModel:NT10
Send Inquiry
PDF DownLoad
Product Description
7A/250VAC,5A/30VDC high capacity switching.
Small size, light weight and low coil power consumption.
PC board mounting is available.
Ambient operating temperature: max. 105℃
Suitable for home appliance application , automatic system , electronic equipment , instruments ,communication device,remote control device and so on.
Small size, light weight and low coil power consumption.
PC board mounting is available.
Ambient operating temperature: max. 105℃
Suitable for home appliance application , automatic system , electronic equipment , instruments ,communication device,remote control device and so on.
Product in accordance to IEC60335-1 available.
Ordering Information
1 Part number:NT10
2 Contact arrangement:A:1A
3 Enclosure S:Wash tight ; Nil: Flux proof
4 Coil rated voltage(V):DC:5,12,18,24
5 Contact material:Nil:AgSnO₂; N:AgNi
6 W: 335 compliant Nil:Standard
Contact Data
Coil Parameter
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
Characteristics
|
Insulation Resistance |
1000MΩ min (at 500VDC) |
Item 4.11 of IEC 61810-7 |
|
Dielectric Strength Between Contacts Between Contact and Coil |
50Hz 750V 50Hz 4000V |
Item 4.9 of IEC 661810-7 Item 4.9 of IEC 61810-7 |
|
Impulse Withstand Voltage (Between Contact and Coil) |
10kV (1.2/50 us) |
Item 4.10 of IEC 61810-7 |
|
Shock Resistance |
Functional:98m/s² |
Item 4.26 of IEC 61810-7 |
|
Destructive:980m/s² |
||
|
Vibration Resistance |
Functional: 10Hz-55Hz Double amplitude 1.5mm |
Item 4.28 of IEC 61810-7 |
|
Destructive: 10Hz-55Hz Double amplitude 1.5mm |
||
|
Terminals Strength |
5N |
Item 4.24 of IEC 61810-7 |
|
Ambient Temperature |
-40℃~105℃ |
|
|
Relative Humidity |
5% to 85% |
Item 4.16 of IEC61810-7 |
|
Mass |
Approx.4g |
Item 4.7 of IEC 61810-7 |
Safety approvals

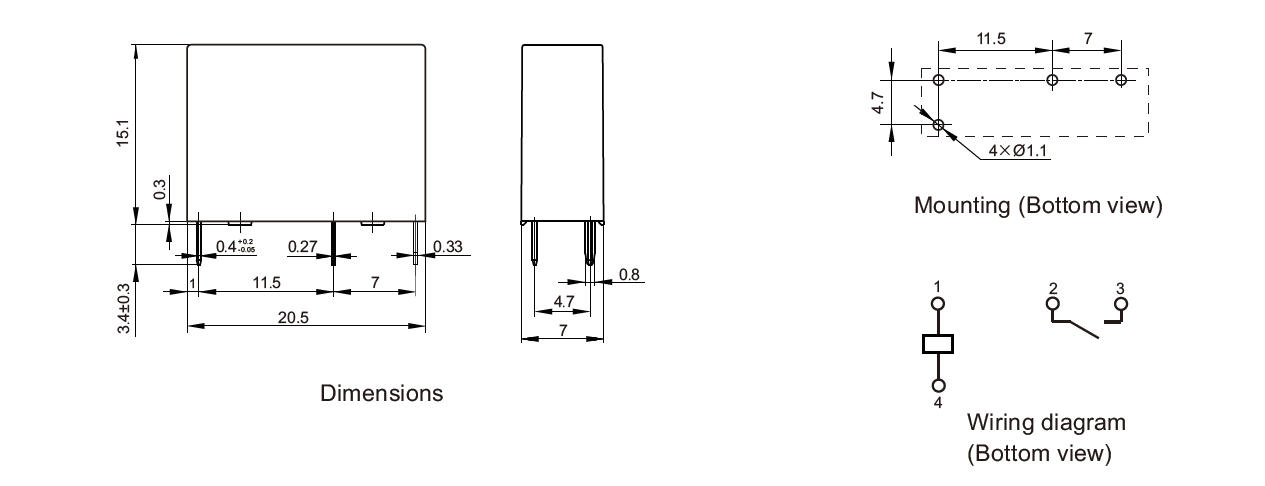

Dimensions
Reference Data
