Miniature High Power Relay 20A/250VAC

As a professional high quality Miniature High Power Relay 20A/250VAC manufacturer, you can rest assured to buy Power Relay from our factory.
◉ Low coil power consumption
◉ 20A/250VAC switching capability
◉ 1 Form A and 1 Form C contact arrangement
◉ Plastic sealed and flux proofed types available
◉ Product in accordance to IEC60335-1 available
◉ RoHS Compliant

Model:NT20

PDF DownLoad

Product Description

Small size, light weight and heavy switching power.

20A switching capability. TV-12 switching capability.

3kV dielectric strength between the coil and contact.

Product in accordance to IEC60335-1 available.

Suitable for household electrical appliances, automation system, electronic equipment, instrument and meter application.TV remote control TV receivers, monitor display, audio equipment high and rushing current application.

Ordering Information

1 Part number: NT20

2 Nil:Standard; W: Wide terminal

3 Contact arrangement: A:1A; C:1C

4 Enclosure: S: Wash tight; F: Flux proof

5 Contact rating: 16:16A/250VAC; 20:20A/250VAC;10:10A/250VAC

6 Coil power: NIL:0.36W; L:0.2W

7 Coil rated voltage(V): DC:3,5,6,9,12,24,48

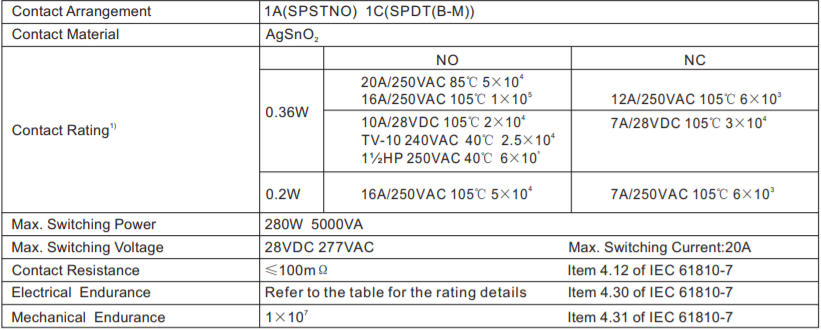

Contact Data

Coil Parameter

Characteristics

Insulation Resistance	100MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength Between Contacts Between Contact and Coil	50Hz 1000V 50Hz 3000V	Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7
Shock Resistance	98m/s2 11ms	Item 4.26 of IEC 61810-7
Vibration Resistance	10Hz~55Hz Double amplitude 1.5mm	Item 4.28 of IEC 61810-7
Terminals Strength	10N	Item 4.24 of IEC 61810-7
Ambient Temperature	-40℃~105℃
Relative Humidity	5%~85%	Item 4.16 of IEC 61810-7
Mass	12g	Item 4.7 of IEC 61810-7

Safety Approvals

Safety approval	UL&CUR	VDE
Load	NO:20A250VAC 85℃,16A/250VAC 105℃,10A/28VDC 105℃ 112HP 250VAC;TV-10 240VAC 40℃ NC: 12A,10A/250VAC 105℃,7A/28VDC 105℃	NO: 20A/250VAC 85℃ NO:16A/250VAC 105℃ NC:12A/250VAC 105℃

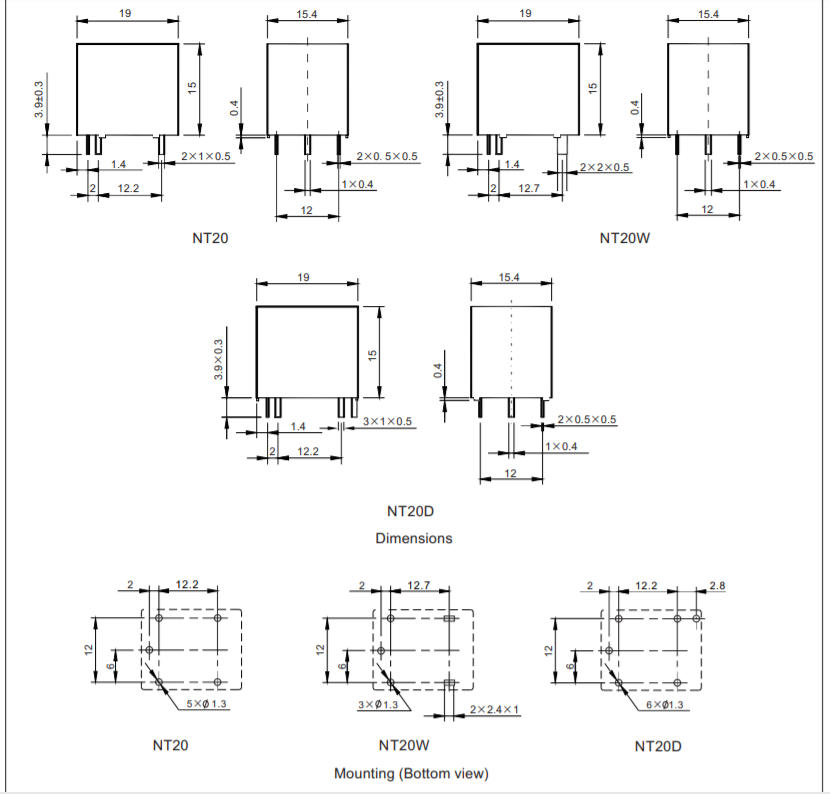

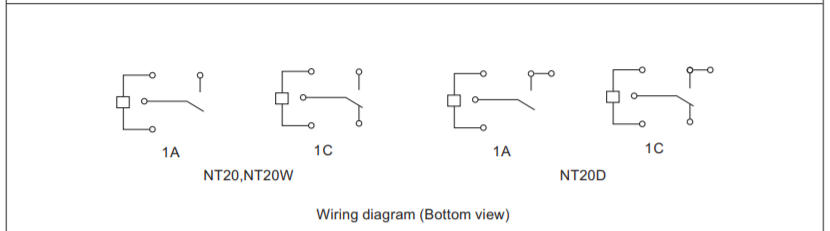

Dimensions

CAUTION:

In case of no tolerance shown in outline dimension: outline dimension ≤1mm,tolerance should be±0.2mm;outline dimension >1mm and ≤5mm, tolerance should be±0.3mm; outline dimension >5mm,tolerance shouldbe±0.4mm.
