Miniature High Power Relay With Flanged Mounting

The following is the introduction of high quality Miniature High Power Relay With Flanged Mounting, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future!
◉ QC terminals
◉ Heavy contact load
◉ 40A switching capability
◉ Low coil power consumption
◉ Strong anti-shock, anti-vibration and high reliability
◉ RoHS Compliant

Model:NT90TP

PDF DownLoad

Product Description

Small size, light weight.
Low coil power consumption, heavy contact load.
Strong anti-shock and anti-vibration, high reliability, long life.

Suitable for automobile, machine, electronic equipment, air conditioner and household appliances applications.

Ordering Information

1 Part number:NT90TP, NT90TP2
2 Load:H:30A; N:40A
3 High:NIL: Standard; L: Low profile type
4 Contact arrangement:A:1A; B:1B; C:1C
5 Enclosure:D: Dust protected;
E: Flux proof
6 Coil rated Voltage(V):AC:12,24, 110,120,220,240,277
DC:3,5,6,9,12,15,18,24,36,48,110
7 Contact material:S:AgSnO₂;C: AgCdO
8 Resist heat class:B:130℃ F:155℃
9 Coil power:0.6:0.6W; 0.9:0.9W; 2:2VA

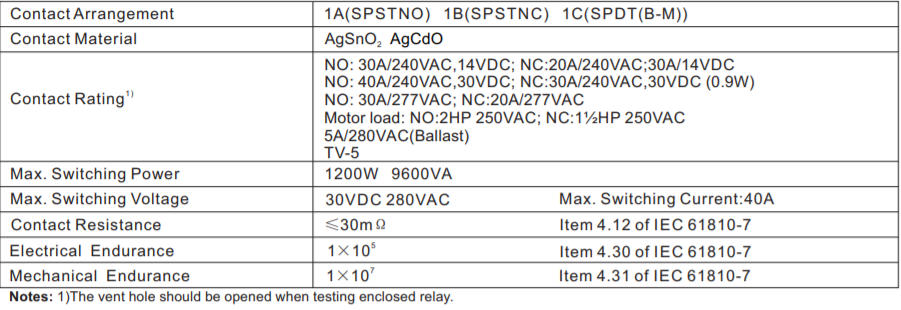

Contact Data

Coil Parameter

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

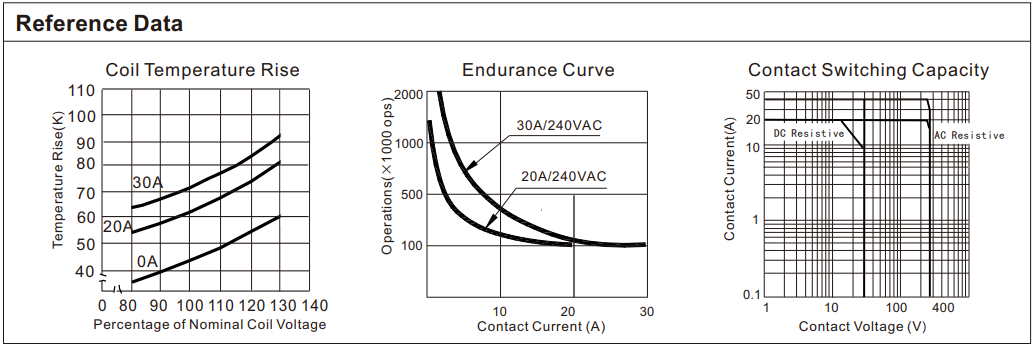

Characteristics

Insulation Resistance	1000MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength Between Contacts Between Contact and Coil	50Hz 1500V 50Hz 2500V	Item 4.9 of IEC 61810-7 Item 4.9 of IEC 61810-7
Shock Resistance	Functional: 98m/s² 11ms	Item 4.26 of IEC 61810-7
Shock Resistance	Destructive: 980m/s² 11ms	Item 4.26 of IEC 61810-7
Vibration Resistance	10Hz*55Hz Double amplitude 1.5mm	Item 4.28 of IEC 61810-7
Terminals Strength	10N	Item 4.24 of IEC 61810-7
Ambient Temperature	-55℃~85℃
Relative Humidity	5% to 85%	Item 4.16 of IEC 61810-7
Mass	35g ( Low profile type) 37g	Item 4.7 of IEC 61810-7
